How to create qr code and barcode reader app for android phone?


For qr code and barcode reader app for android phone, At some point of the development of Android application, occasionally it is required to provide a functionality that scans a QR code or barcode. Scanning the QR code can be achieved programmatically by means of the usage of many approaches:

  • the usage of an internet-based API, where the QR code or barcode is uploaded to the server, and the server returns the results.
  • the usage of an internet-based totally utility that accesses your camera and scans the QR code or barcode and returns the results.
  • by means of Integrating the Mobile Vision API of Google Play Service.
Here we are going to share the world how to create qr code or barcode reader app for android phone with certain steps.


QR Code Scanner Example

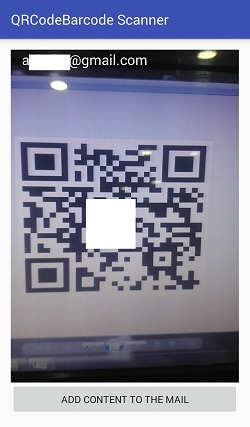

In this example, we will scan the QR code of a web URL and Email address, and act on it. Here we will use the Mobile Vision API of Google Play Service to scan the QR code. The Mobile Vision API supports the following formats of the barcode.
  • 1D barcodes: EAN-8, UPC-A, EAN-13, EAN-8, UPC-E, Code-93, Code-128, Code-39, Codabar, ITF.
  • 2D barcodes: QR Code, Data Matrix, AZTEC, PDF-417.
Create an activity_main.xml and add the following code.


  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.     tools:context="example.com.qrcodebarcodescanner.MainActivity">
  8.
  9.     <Button
  10.         android:id="@+id/btnScanBarcode"
  11.         android:layout_width="300dp"
  12.         android:layout_height="wrap_content"
  13.         android:layout_centerHorizontal="true"
  14.         android:layout_marginBottom="44dp"
  15.         android:layout_marginEnd="8dp"
  16.         android:layout_marginStart="8dp"
  17.         android:text="@string/scan_barcode"
  18.         app:layout_constraintBottom_toBottomOf="parent"
  19.         app:layout_constraintEnd_toEndOf="parent"
  20.         app:layout_constraintHorizontal_bias="0.676"
  21.         app:layout_constraintStart_toStartOf="parent" />
  22.
  23. </android.support.constraint.ConstraintLayout>

Create an activity_scanned_barcode.xml layout and add the following code. The SurfaceView widget is used for camera source.

activity_scanned_barcode.xml

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent"
  6.     android:padding="@dimen/activity_horizontal_margin">
  7.
  8.     <SurfaceView
  9.         android:id="@+id/surfaceView"
  10.         android:layout_width="match_parent"
  11.         android:layout_height="match_parent"
  12.         android:layout_above="@+id/btnAction"
  13.         android:layout_alignParentLeft="true"
  14.         android:layout_alignParentStart="true"
  15.         android:layout_centerVertical="true" />
  16.
  17.     <TextView
  18.         android:id="@+id/txtBarcodeValue"
  19.         android:layout_width="wrap_content"
  20.         android:layout_height="wrap_content"
  21.         android:layout_alignParentTop="true"
  22.         android:layout_marginLeft="@dimen/activity_horizontal_margin"
  23.         android:layout_marginStart="@dimen/activity_horizontal_margin"
  24.         android:text="No Barcode Detected"
  25.         android:textColor="@android:color/white"
  26.         android:textSize="20sp" />
  27.
  28.
  29.     <Button
  30.         android:id="@+id/btnAction"
  31.         android:layout_width="match_parent"
  32.         android:layout_height="wrap_content"
  33.         android:layout_alignParentBottom="true"
  34.         android:text="ADD CONTENT IN THE MAIL" />
  35. </RelativeLayout>

Create an activity_email.xml layout to perform email action.

activity_email.xml

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.     tools:context="example.com.qrcodebarcodescanner.EmailActivity">
  8.
  9.     <Button
  10.         android:id="@+id/btnSendEmail"
  11.         android:layout_width="300dp"
  12.         android:layout_height="wrap_content"
  13.         android:layout_below="@+id/inBody"
  14.         android:layout_centerHorizontal="true"
  15.         android:layout_marginBottom="64dp"
  16.         android:layout_marginEnd="8dp"
  17.         android:layout_marginStart="8dp"
  18.         android:text="@string/send_email"
  19.         app:layout_constraintBottom_toBottomOf="parent"
  20.         app:layout_constraintEnd_toEndOf="parent"
  21.         app:layout_constraintStart_toStartOf="parent" />
  22.
  23.
  24.     <TextView
  25.         android:id="@+id/txtEmailAddress"
  26.         android:layout_width="match_parent"
  27.         android:layout_height="wrap_content"
  28.         android:layout_alignParentTop="true"
  29.         android:layout_marginBottom="8dp"
  30.         android:layout_marginEnd="8dp"
  31.         android:layout_marginStart="8dp"
  32.         android:layout_marginTop="8dp"
  33.         android:text="Email Address: "
  34.         android:textSize="16dp"
  35.         android:textStyle="bold"
  36.         app:layout_constraintBottom_toTopOf="@+id/inSubject"
  37.         app:layout_constraintEnd_toEndOf="parent"
  38.         app:layout_constraintStart_toStartOf="parent"
  39.         app:layout_constraintTop_toTopOf="parent" />
  40.
  41.     <EditText
  42.         android:id="@+id/inSubject"
  43.         android:layout_width="match_parent"
  44.         android:layout_height="wrap_content"
  45.         android:layout_below="@+id/txtEmailAddress"
  46.         android:layout_centerHorizontal="true"
  47.         android:layout_marginEnd="8dp"
  48.         android:layout_marginStart="8dp"
  49.         android:layout_marginTop="88dp"
  50.         android:ems="10"
  51.         android:hint="Subject"
  52.         app:layout_constraintEnd_toEndOf="parent"
  53.         app:layout_constraintStart_toStartOf="parent"
  54.         app:layout_constraintTop_toTopOf="parent" />
  55.
  56.     <EditText
  57.         android:id="@+id/inBody"
  58.         android:layout_width="match_parent"
  59.         android:layout_height="wrap_content"
  60.         android:layout_below="@+id/inSubject"
  61.         android:layout_centerHorizontal="true"
  62.         android:layout_marginEnd="8dp"
  63.         android:layout_marginStart="8dp"
  64.         android:layout_marginTop="164dp"
  65.         android:ems="10"
  66.         android:hint="Body"
  67.         app:layout_constraintEnd_toEndOf="parent"
  68.         app:layout_constraintHorizontal_bias="1.0"
  69.         app:layout_constraintStart_toStartOf="parent"
  70.         app:layout_constraintTop_toTopOf="parent" />
  71. </android.support.constraint.ConstraintLayout>

Add the Google Mobile Vision API in build.gradle file.

build.gradle

  1. implementation of 'com.google.android.gms:play-services-vision:11.8.0'

In the MainActivity.java file, add the following code. By clicking the button btnScanBarcode it call the ScannedBarcodeActivity.java class.

MainActivity.java

  1. package example.com.qrcodebarcodescanner;
  2.
  3. import android.content.Intent;
  4. import android.support.v7.app.AppCompatActivity;
  5. import android.os.Bundle;
  6. import android.view.View;
  7. import android.widget.Button;
  8.
  9. public class MainActivity extends AppCompatActivity {
  10.     Button  btnScanBarcode;
  11.     @Override
  12.     protected void onCreate(Bundle savedInstanceState) {
  13.         super.onCreate(savedInstanceState);
  14.         setContentView(R.layout.activity_main);
  15.         btnScanBarcode = findViewById(R.id.btnScanBarcode);
  16.
  17.         btnScanBarcode.setOnClickListener(new View.OnClickListener() {
  18.             @Override
  19.             public void onClick(View view) {
  20.                 startActivity(new Intent(MainActivity.this, ScannedBarcodeActivity.class));
  21.             }
  22.         });
  23.     }
  24. }

In the ScannedBarcodeActivity.java activity class, add the following code. This class scans the QR code through the camera. In this class, we will generate two QR code, one for web URL and another is for an email address. A QR code can be generated from any of QR code generator website.

ScannedBarcodeActivity.java

  1. package example.com.qrcodebarcodescanner;
  2.
  3. import android.Manifest;
  4. import android.content.Intent;
  5. import android.content.pm.PackageManager;
  6. import android.net.Uri;
  7. import android.os.Bundle;
  8. import android.support.v4.app.ActivityCompat;
  9. import android.support.v7.app.AppCompatActivity;
  10. import android.util.SparseArray;
  11. import android.view.SurfaceHolder;
  12. import android.view.SurfaceView;
  13. import android.view.View;
  14. import android.widget.Button;
  15. import android.widget.TextView;
  16. import android.widget.Toast;
  17. import com.google.android.gms.vision.CameraSource;
  18. import com.google.android.gms.vision.Detector;
  19. import com.google.android.gms.vision.barcode.Barcode;
  20. import com.google.android.gms.vision.barcode.BarcodeDetector;
  21. import java.io.IOException;
  22.
  23. public class ScannedBarcodeActivity extends AppCompatActivity {
  24.
  25.
  26.     SurfaceView surfaceView;
  27.     TextView txtBarcodeValue;
  28.     private BarcodeDetector barcodeDetector;
  29.     private CameraSource cameraSource;
  30.     private static final int REQUEST_CAMERA_PERMISSION = 201;
  31.     Button btnAction;
  32.     String intentData = "";
  33.     boolean isEmail = false;
  34.
  35.     @Override
  36.     protected void onCreate(Bundle savedInstanceState) {
  37.         super.onCreate(savedInstanceState);
  38.         setContentView(R.layout.activity_scanned_barcode);
  39.         initViews();
  40.     }
  41.
  42.     private void initViews() {
  43.         txtBarcodeValue = findViewById(R.id.txtBarcodeValue);
  44.         surfaceView = findViewById(R.id.surfaceView);
  45.         btnAction = findViewById(R.id.btnAction);
  46.         btnAction.setOnClickListener(new View.OnClickListener() {
  47.             @Override
  48.             public void onClick(View v) {
  49.                 if (intentData.length() > 0) {
  50.                     if (isEmail)
  51.                         startActivity(new Intent(ScannedBarcodeActivity.this, EmailActivity.class).putExtra("email_address", intentData));
  52.                     else {
  53.                         startActivity(new Intent(Intent.ACTION_VIEW, Uri.parse(intentData)));
  54.                     }
  55.                 }
  56.             }
  57.         });
  58.     }
  59.
  60.     private void initialiseDetectorsAndSources() {
  61.
  62.         Toast.makeText(getApplicationContext(), "Barcode scanner started", Toast.LENGTH_SHORT).show();
  63.         barcodeDetector = new BarcodeDetector.Builder(this)
  64.                 .setBarcodeFormats(Barcode.ALL_FORMATS)
  65.                 .build();
  66.
  67.         cameraSource = new CameraSource.Builder(this, barcodeDetector)
  68.                 .setRequestedPreviewSize(19201080)
  69.                 .setAutoFocusEnabled(true//you should add this feature
  70.                 .build();
  71.
  72.         surfaceView.getHolder().addCallback(new SurfaceHolder.Callback() {
  73.             @Override
  74.             public void surfaceCreated(SurfaceHolder holder) {
  75.                 try {
  76.                     if (ActivityCompat.checkSelfPermission(ScannedBarcodeActivity.this, Manifest.permission.CAMERA) == PackageManager.PERMISSION_GRANTED) {
  77.                         cameraSource.start(surfaceView.getHolder());
  78.                     } else {
  79.                         ActivityCompat.requestPermissions(ScannedBarcodeActivity.thisnew
  80.                                 String[]{Manifest.permission.CAMERA}, REQUEST_CAMERA_PERMISSION);
  81.                     }
  82.
  83.                 } catch (IOException e) {
  84.                     e.printStackTrace();
  85.                 }
  86.             }
  87.
  88.             @Override
  89.             public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {
  90.             }
  91.
  92.             @Override
  93.             public void surfaceDestroyed(SurfaceHolder holder) {
  94.                 cameraSource.stop();
  95.             }
  96.         });
  97.
  98.
  99.         barcodeDetector.setProcessor(new Detector.Processor<Barcode>() {
  100.             @Override
  101.             public void release() {
  102.                 Toast.makeText(getApplicationContext(), "To prevent memory leaks barcode scanner has been stopped", Toast.LENGTH_SHORT).show();
  103.             }
  104.
  105.             @Override
  106.             public void receiveDetections(Detector.Detections<Barcode> detections) {
  107.                 final SparseArray<Barcode> barcodes = detections.getDetectedItems();
  108.                 if (barcodes.size() != 0) {
  109.                     txtBarcodeValue.post(new Runnable() {
  110.                         @Override
  111.                         public void run() {
  112.
  113.                             if (barcodes.valueAt(0).email != null) {
  114.                                 txtBarcodeValue.removeCallbacks(null);
  115.                                 intentData = barcodes.valueAt(0).email.address;
  116.                                 txtBarcodeValue.setText(intentData);
  117.                                 isEmail = true;
  118.                                 btnAction.setText("ADD CONTENT TO THE MAIL");
  119.                             } else {
  120.                                 isEmail = false;
  121.                                 btnAction.setText("LAUNCH URL");
  122.                                 intentData = barcodes.valueAt(0).displayValue;
  123.                                 txtBarcodeValue.setText(intentData);
  124.                             }
  125.                         }
  126.                     });
  127.                 }
  128.             }
  129.         });
  130.     }
  131.
  132.
  133.     @Override
  134.     protected void onPause() {
  135.         super.onPause();
  136.         cameraSource.release();
  137.     }
  138.
  139.     @Override
  140.     protected void onResume() {
  141.         super.onResume();
  142.         initialiseDetectorsAndSources();
  143.     }
  144. }

In the EmailActivity.java class, add the following code. This class performs the email sending task to the address mention in the QR code.

EmailActivity.java

  1. package example.com.qrcodebarcodescanner;
  2.
  3. import android.content.Intent;
  4. import android.os.Bundle;
  5. import android.support.v7.app.AppCompatActivity;
  6. import android.view.View;
  7. import android.widget.Button;
  8. import android.widget.EditText;
  9. import android.widget.TextView;
  10.
  11. public class EmailActivity extends AppCompatActivity implements View.OnClickListener {
  12.
  13.     EditText inSubject, inBody;
  14.     TextView txtEmailAddress;
  15.     Button btnSendEmail;
  16.
  17.     @Override
  18.     protected void onCreate(Bundle savedInstanceState) {
  19.         super.onCreate(savedInstanceState);
  20.         setContentView(R.layout.activity_email);
  21.         initViews();
  22.     }
  23.
  24.     private void initViews() {
  25.         inSubject = findViewById(R.id.inSubject);
  26.         inBody = findViewById(R.id.inBody);
  27.         txtEmailAddress = findViewById(R.id.txtEmailAddress);
  28.         btnSendEmail = findViewById(R.id.btnSendEmail);
  29.
  30.         if (getIntent().getStringExtra("email_address") != null) {
  31.             txtEmailAddress.setText("Recipient : " + getIntent().getStringExtra("email_address"));
  32.         }
  33.
  34.         btnSendEmail.setOnClickListener(new View.OnClickListener() {
  35.             @Override
  36.             public void onClick(View v) {
  37.                 Intent intent = new Intent(Intent.ACTION_SEND);
  38.                 intent.setType("text/plain");
  39.                 intent.putExtra(Intent.EXTRA_EMAIL, new String[]{txtEmailAddress.getText().toString()});
  40.                 intent.putExtra(Intent.EXTRA_SUBJECT, inSubject.getText().toString().trim());
  41.                 intent.putExtra(Intent.EXTRA_TEXT, inBody.getText().toString().trim());
  42.
  43.                 startActivity(Intent.createChooser(intent, "Send Email"));
  44.             }
  45.         });
  46.     }
  47.
  48.     @Override
  49.     public void onClick(View v) {
  50.
  51.         switch (v.getId()) {
  52.             case R.id.btnScanBarcode:
  53.                 startActivity(new Intent(EmailActivity.this, ScannedBarcodeActivity.class));
  54.                 break;
  55.         }
  56.     }
  57. }

Add the following code in AndroidMenifest.xml file.

AndroidMenifest.java

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="example.com.qrcodebarcodescanner">
  4.
  5.     <uses-feature
  6.         android:name="android.hardware.camera"
  7.         android:required="true" />
  8.
  9.     <uses-permission android:name="android.permission.CAMERA" />
  10.     <uses-feature android:name="android.hardware.camera.autofocus" />
  11.     <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
  12.     <uses-permission android:name="android.permission.INTERNET" />
  13.
  14.     <application
  15.         android:allowBackup="true"
  16.         android:icon="@mipmap/ic_launcher"
  17.         android:label="@string/app_name"
  18.         android:roundIcon="@mipmap/ic_launcher_round"
  19.         android:supportsRtl="true"
  20.         android:theme="@style/AppTheme">
  21.         <activity android:name=".MainActivity">
  22.             <intent-filter>
  23.                 <action android:name="android.intent.action.MAIN" />
  24.
  25.                 <category android:name="android.intent.category.LAUNCHER" />
  26.             </intent-filter>
  27.         </activity>
  28.
  29.         <activity android:name=".ScannedBarcodeActivity" />
  30.         <activity
  31.             android:name=".EmailActivity"
  32.             android:windowSoftInputMode="adjustPan" />
  33.     </application>
  34.
  35. </manifest>

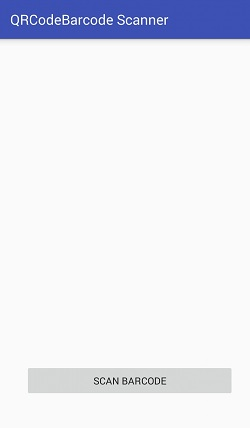

ouput:





I hope this will helpfull to you please share this article if posible.


Comments

Popular posts from this blog

Microsoft announces App Mirroring to use any Android app on Windows 10

Microsoft announces App Mirroring to use any Android app on Windows 10 Can Windows 10 run Android apps? Microsoft today announced a new feature for Windows 10 that will allow Android phone users to view and use any app on their device from Windows Desktop. This feature, which Microsoft refers to as the app mirroring and shows your phone in Windows as an app called, works best with Android for now. Although Microsoft announced the ability to transfer webpages from the iPhone 10 to a Windows 10 desktop, so you can pick up where you left on mobile. Regardless, your phone app is an important step in helping Windows 10 and mobile ecosystems after the death of Windows 10. We were not seen on a comprehensive demo platform, but we took a look at the user who shared snapchat messages with a friend on the surface device using the app-mirroring feature. Microsoft says that this component will currently be accessible with the new Windows 10 October refresh. It starts with the mirror

Google Maps will currently show speed limits for its Android and iOS applications

Google Maps will currently show speed limits for its Android and iOS applications The Android Policepeed Trap is designed to catch drivers who are fast, when they do not want to. Although we should be running fast at first place, sometimes due to being a bit more, these cameras are enough to trigger, resulting in a fine that many people would probably prefer to avoid in the first place. According to a report from the Android Police, it seems Google is testing the speed trap icon on Google Maps, where it will be able to alert users when they reach. The interesting thing is that Google is taking so much time to implement such features in Google Maps to get started with Google Maps. Google-owned, already comes with road blocks, traffic jams, potholes, and similar information, while Google Maps has some features. However, these changes are suggesting that Google is looking to make Google Maps even more powerful. It's being said, this is a test at present and it seems that not e

Google Plus Shutting down for consumer (personal) accounts on April 2, 2019

"Google Plus Shutting down" this is big shocking news by google plus users. A big announcement for Google plus user that google plus shutting down. Google has decided to shut down his Google plus services. In December 2018, Google declared his choice to close down Google+ for users in April 2019 because of low use and difficulties associated with keeping up an effective item that lives up to users' desires. On April second (2nd April 2019), your Google+ account and any Google+ pages you made will be closed down and Google will start erasing content from user Google+ accounts. Photographs and videos from Google+ in your Album Archive and your Google+ pages will likewise be erased. You can download and spare your substance, simply try to do as such before April. Note that photographs and videos supported up in Google Photos won't be erased. Google plus shutting down, So you have to download your photos and videos as quickly as possible because after 2nd Apri
